HGH15CAZBH Hiwin Linear Carriage

Quantity Breaks: Applied at Checkout

10+: £0.00      25+: £0.00      50+: £0.00

CALL
(Exc. 20% VAT)
(£0.00 Inc. VAT)
Generally available on a 2-3 day lead time
+
MOORE Part Number
HLCHGH15CAZBH
Brand
Hiwin

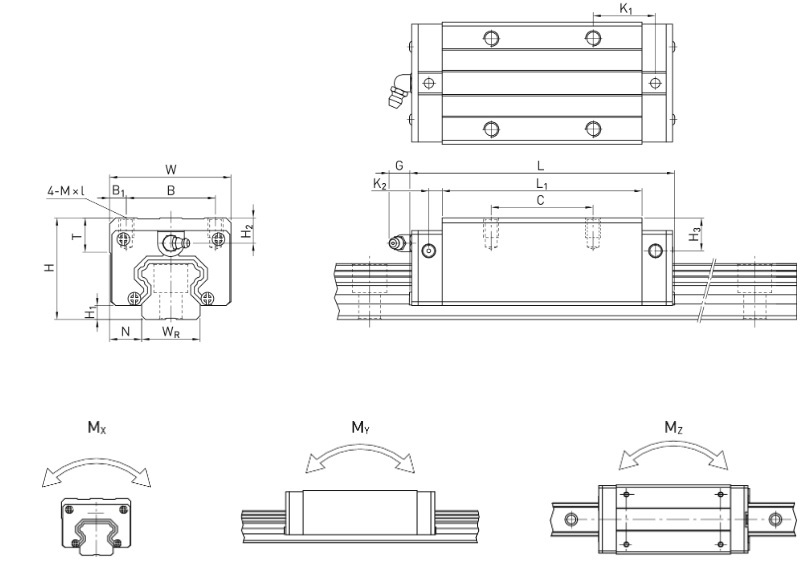

Carriage Size:
15.00mm
Carriage Style:
H - High Square
Carriage Width (W):
34.00mm
Total Height (H):
28.00mm
Carriage Length (L):
61.40mm
Preload Class:
ZB - High
Weight
270 g
Information

HGH15CAZBH Hiwin Linear Carriage

Standard series in X arrangement. The HIWIN linear guideways of the HG series with four ball tracks are designed for high loads and rigidities. Due to the 45° arrangement of the ball tracks, the HG series can take loads from all directions equally. The modes of the QH series with SynchMotion™ technology offer all the advantages of the standard HG series. Controlled movement of the balls at a defined distance also results in improved synchronous performance, higher reliable travel speeds, extended lubrication intervals and less running noise.

Technical Information
